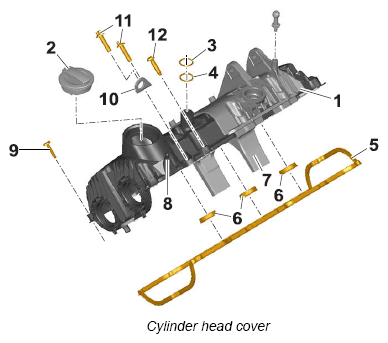

Cylinder head cover
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Cylinder head cover |
| 2 |
Oil filler cover |
| 3 |
O-ring, 22.5 x 2.5 FPM |
| 4 |
O-ring, 22.5 x 2 x 5 HNBR |
| 5 |
Cylinder head cover gasket |
| 6 |
Cylinder head cover gasket, inner |
| 7 |
Oil mist separator |
| 8 |
Engine cover mounting |
| 9 |
Screw |
| 10 |
Transport eyebolt |
| 11 |
Screw |
| 12 |
Screw |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Holder |
| 2 |
Fastening screw securing holder to cylinder head cover for cylinders 1-3 → Tightening torque: 4.5 Nm (3.25 ft lb.) |
