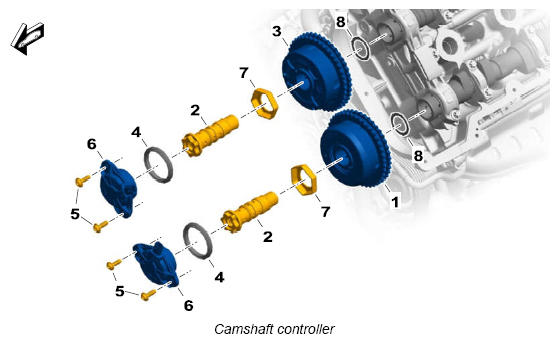

Camshaft controller
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Camshaft controller, outlet (black plastic cover) |
| 2 |
Central screw → Initial tightening: 30 Nm (22 ft lb.) → Final tightening:+40° |
| 3 |
Camshaft controller, intake |
| 4 |
Sealing ring/replace |
| 5 |
Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 6 |
Solenoid hydraulic valve for camshaft control (actuator) |
| 7 |
Hexagon sleeve |
| 8 |
Friction plate/replace |
| Tightening sequence for central screw for camshaft controller (item 2) |
| Result: |
Cylinder bank: |
Camshaft: |
| 1. |
Bank 1, cylinders 1-3 |
Outlet |
| 2. |
Bank 1, cylinders 1-3 |
Intake |
| 3. |
Bank 2, cylinders 4-6 |
Intake |
| 4. |
Bank 2, cylinders 4-6 |
Outlet |
