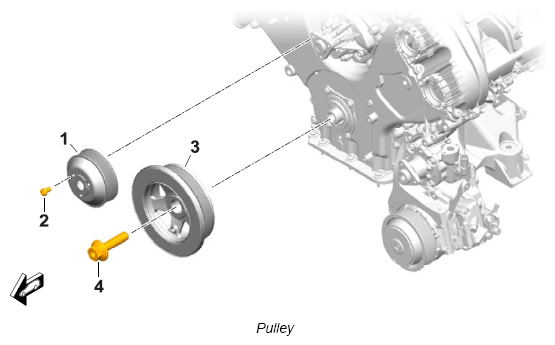

Group 13: Pulleys
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Water pump pulley |
| 2 |
Screw, M8 x 16 → Tightening torque: 23 Nm (17 ft lb.) |
| 3 |
Vibration damper |
| 4 |
Screw, M18 x 1.5 x 72; use new screw; → Tightening torque: 20 Nm (15 ft lb.) → Tightening torque: 50 Nm (37 ft lb.) → Tightening torque: 100 Nm (74 ft lb.) → Torque angle: 180° |
