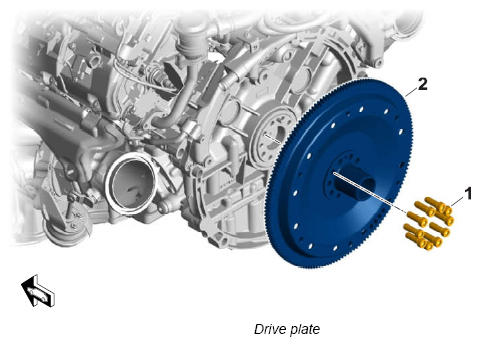

Drive plate
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Drive plate to engine. Tighten screws in diagonally opposite sequence/screw in all screws by hand → Initial tightening: 60 Nm (44 ft lb.) → Final tightening:+90°+/-10° |
| 2 |
Drive plate |
