Crankshaft mount: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

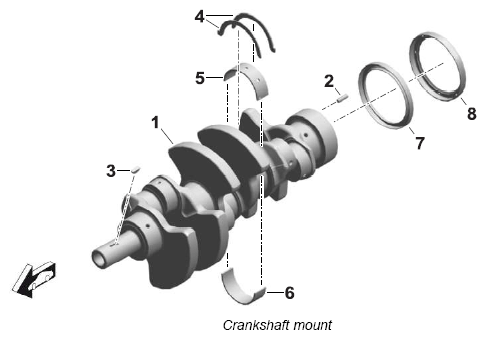

| 1 |
Crankshaft (stroke: 69 mm) |
| 2 |
Straight pin, 6 x 20 |
| 3 |
Spring, 5 x 6.5 |
| 4 |
Thrust washer |
| |
The grooves must be facing outwards. |
| |
Grease with Optipit |
| 5 |
Main bearing shell, upper |
| |
Oil bearing surface of crankshaft with engine oil. |
| 6 |
Main bearing shell, lower |
| |
Oil bearing surface of crankshaft with engine oil. |
| 7 |
Crankshaft sealing ring/replace |
| |
Oil sealing lip with Fuchs Renolin CH500 |
| 8 |
Rotor for hall sender (multi-pole sensor wheel) |
| - |
Direction of travel (main bearing 1 is the first bearing in direction of travel against output) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

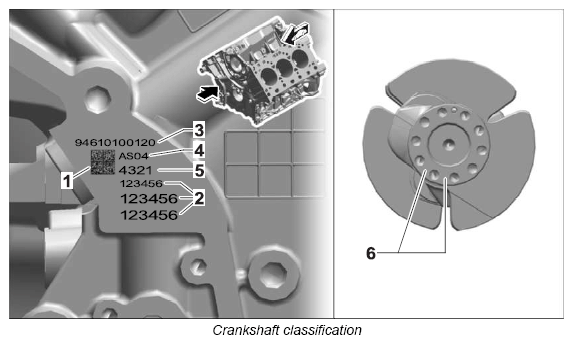

| 1 |
Data matrix including honing classes 0 to 9 |
| 2 |
Serial number (matching number) |
| 3 |
Item number |
| 4 |
Change status |
| 5 |
Honing class for bearing block of main bearings 1 to 4 |
| |
Classification using code 0 to 9 |
| 6 |
Color identification of crankshaft on flange to transmission: Color of main bearing |
| |
Count direction against direction of travel |
| |
Using main bearings in pairs with the same color coding |
