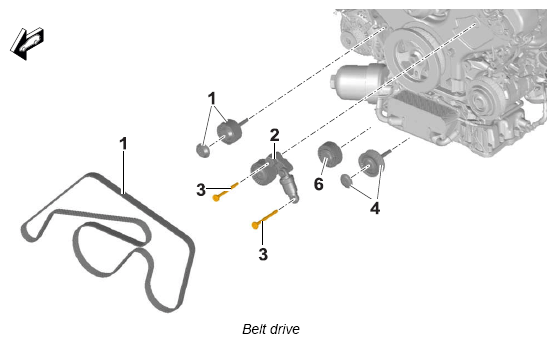

Belt drive

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Deflection roller 2 → Tightening torque: 32 Nm (24 ft lb.)
2	Hydraulic belt tensioner; tensioner to lever → Tightening torque: 32 Nm (24 ft lb.); tensioning roller to tensioning lever → Tightening torque: 32 Nm (24 ft lb.)
3	Screw → Tightening torque: 32 Nm (24 ft lb.)
4	Deflection roller 1 → Tightening torque: 32 Nm (24 ft lb.)
5	Dual poly V-belt
6	Deflection roller 3 → Tightening torque: 32 Nm (24 ft lb.)
