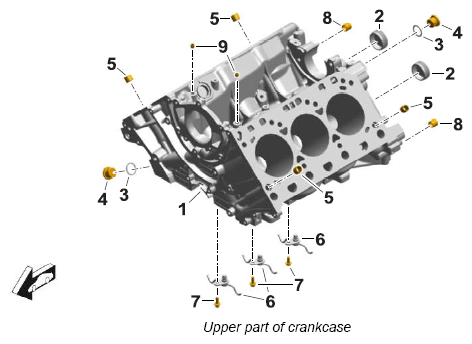

Upper part of crankcase
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Upper part of crankcase |
| 2 |
Cover |
| 3 |
Sealing ring/replace |
| 4 |
Screw plug for upper part of crankcase → Initial tightening: 30 Nm (22 ft lb.) → Torque angle:+60° |
| 5 |
Dowel sleeve |
| 6 |
Oil spray jet |
| 7 |
Screw, M6 → Tightening torque: 10 Nm (7.5 ft lb.) |
