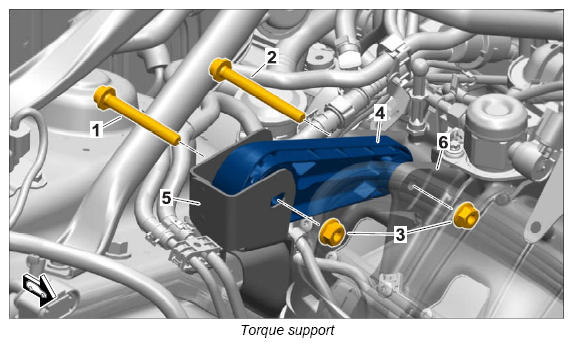

Torque support
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Aluminum screw, M10 x 80/replace → Initial tightening: 20 Nm (15 ft lb.) and → Final tightening: 180° |
| 2 | Aluminum screw, M10 x 90/replace → Initial tightening: 20 Nm (15 ft lb.) and → Final tightening: 180° |
| 3 | Nut/replace |
| 4 | Torque support; part identification on the back, must be installed in opposite direction to direction of travel |
| 5 | Bracket on body |
| 6 | Bracket for cylinder head cover |
