Tightening specifications for crankcase

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

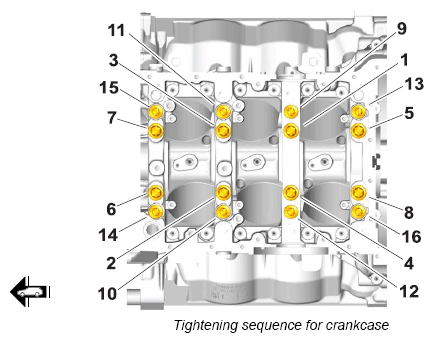

Fig 1: Crankcase Bearing Cap Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 to 8	Thrust-bearing screw, M11; tighten screws within 5 minutes; observe specified tightening sequence! → Initial tightening: 30 Nm (22 ft lb.) → Torque angle: 90°
9 to 16	Thrust-bearing screw, M10; tighten screws within 5 minutes; observe specified tightening sequence! → Initial tightening: 22 Nm (16 ft lb.) → Torque angle: 60°
	Tightening sequence for securing lower part of crankcase to upper part of crankcase (M8 cross bolt connection)-start at the center and tighten uniformly in diagonally opposite sequence
