Engine mounting

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

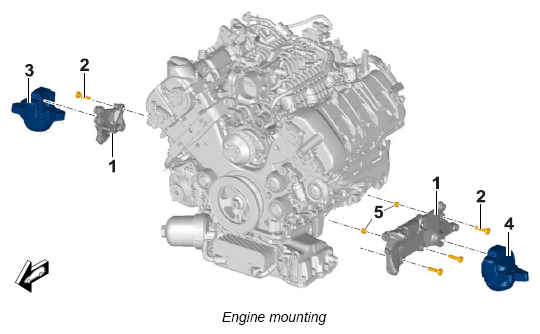

1	Bracket for engine mount
2	Screw, M10 x 45 → Tightening torque: 65 Nm (48 ft lb.)
3	Right engine mount
4	Left engine mount
5	Dowel sleeve, 14m 6x 15

not - Screw, M12 x 1.5 x 60, engine mount to bracket/replace → Initial tightening: 90 Nm pictured (67 ft lb.) → Final tightening:+90°

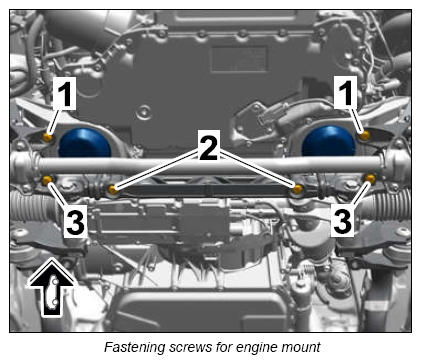

Fig 1: Engine Mount Fastening Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Screw, M8 x 75
2	Screw, M8 x 125
3	Screw, M8 x 95

Fit screws by hand and tighten to the specified torque in the sequence -1, 2, 3- . → Tightening torque: 30 Nm (22 ft lb.)
