Removing power-steering gear

Information

• Secure steering wheel with wheels in straight-ahead position (engage steering column lock or clamp steering wheel in center position with steering-wheel holder). If this is not done, the airbag contact unit will have to be put in center position after installation of the steering gear  .

1. Detach universal joint -1-  .

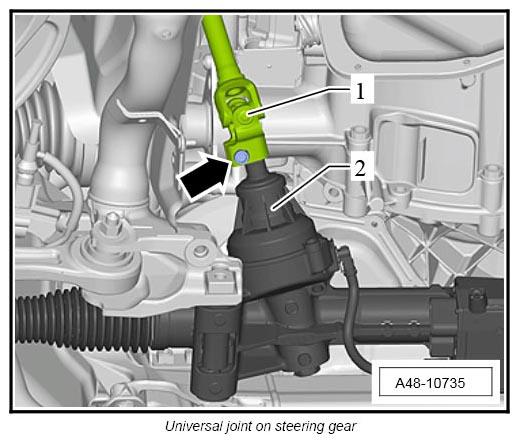

   1. 1.1. Unscrew and remove fastening screw on universal joint -1-  .
   2. 1.2. Remove universal joint -1-  from the steering gear -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Detach tie-rod ball from tie rod.

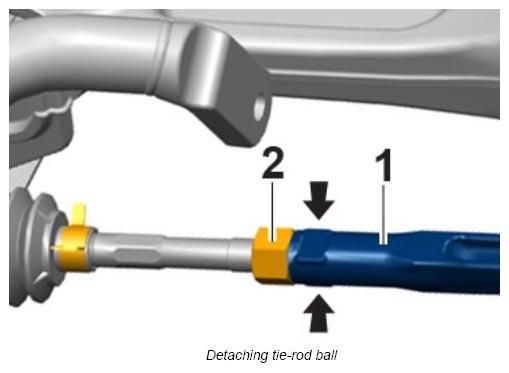

   1. 2.1. Counter the tie-rod ball -1-  at the flattened areas using a suitable open-ended wrench.
   2. 2.2. Loosen lock nut -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

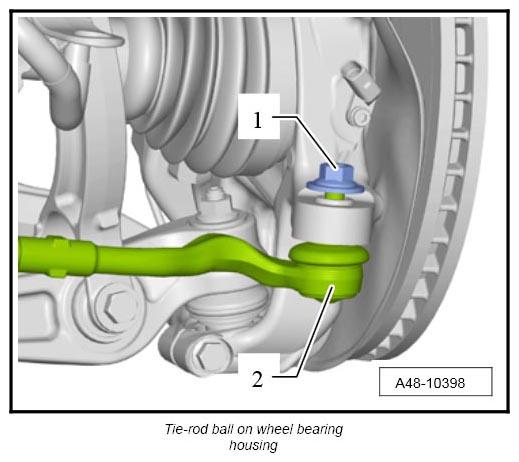

3. Unscrew fastening nut -1-  on the joint pin for the tie-rod ball -2-  until it is flush with the thread of the joint pin.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Loosen tie-rod ball from the wheel bearing housing. Make sure not to damage the speed sensor.

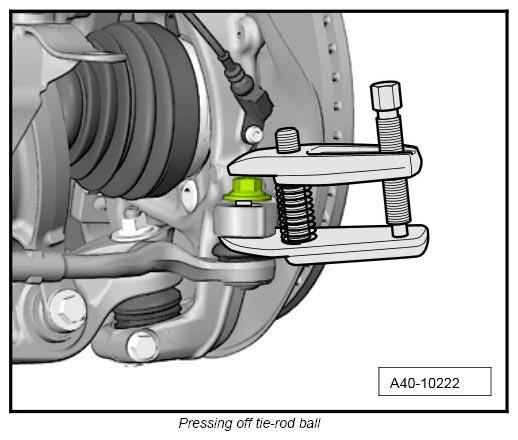

   1. 4.1. Position Ball-joint extractor T40010A  over the tie-rod ball and fit on the fastening nut.
   2. 4.2. Press tie-rod ball off the wheel bearing housing using ball joint puller T40010  .

      Screw in hexagon on the ball joint puller T40010  until the tie-rod ball becomes detached from the wheel bearing housing.

      Make sure that the lever arms of the ball joint puller are parallel to each other when the greatest amount of force is applied. Re-adjust if necessary.

      → Pressing off tie-rod ball

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

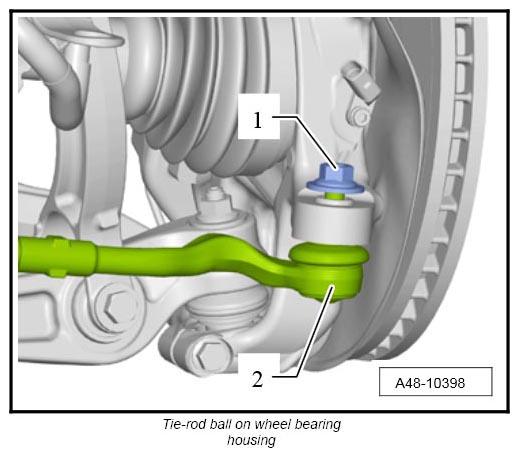

5. Loosen fastening nut -1-  from the joint pin on the tie-rod ball -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Lower the anti-roll bar.

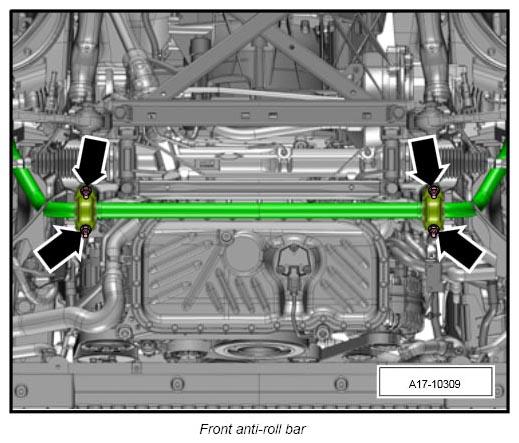

   1. 6.1. Unscrew fastening nuts and lower the anti-roll bar.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

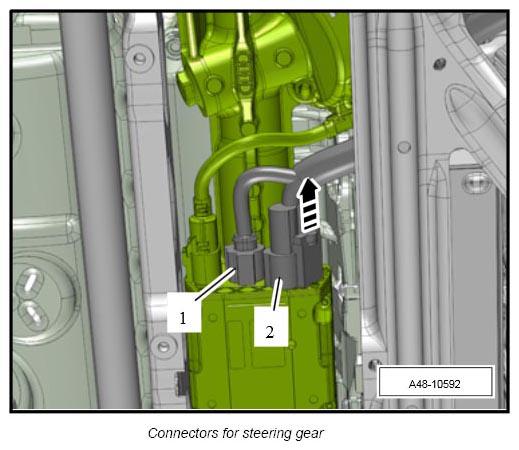

7. Release and disconnect connectors for vehicle signals -1-  and power supply -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

8. Remove steering gear.
   WARNING: Danger of objects or loads falling down

   • Risk of squashing or crushing

   → Secure components to prevent them from falling down.

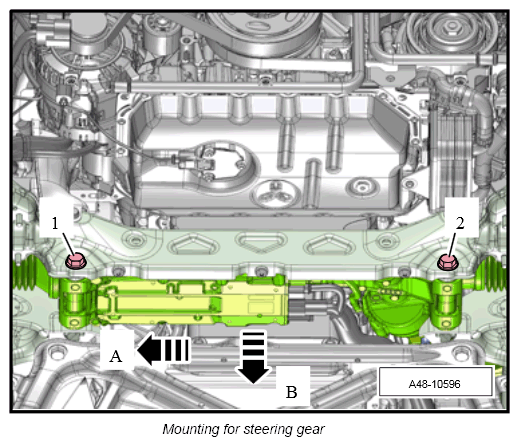

   1. 8.1. Unscrew and remove fastening screws -1-  and -2-  on the steering gear.
   2. 8.2. Press steering gear aside slightly -arrow A-  and remove it by pulling it downwards -arrow B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
