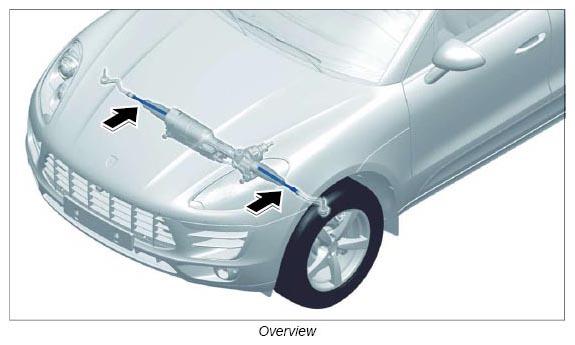

Removing tie rod

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Mark the position of the tie-rod ball on the thread before unscrewing it from the tie rod.

Count the number of turns when unscrewing it (turns of tie-rod ball).

This avoids the need to perform an approximate adjustment of the steering trapeze when reassembling.

This is not a substitute for the suspension alignment.

Information

After removing the tie rod, the steering track must be adjusted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

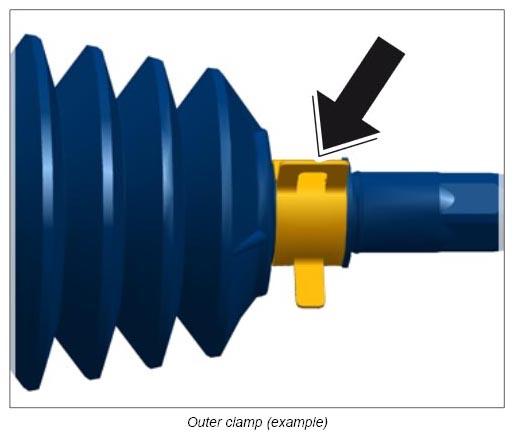

Loosen the outer clamp on the bellows using Spring Band Clamp Pliers WE 1646 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

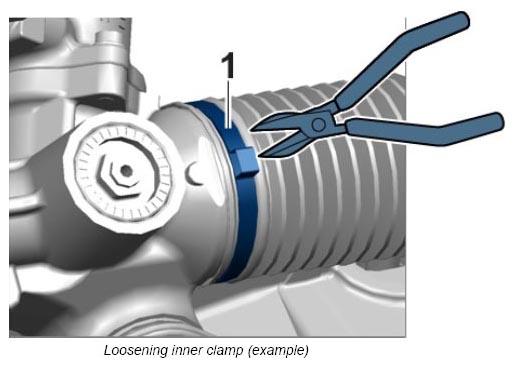

Loosen the inner clamp -1- on the bellows using suitable pliers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

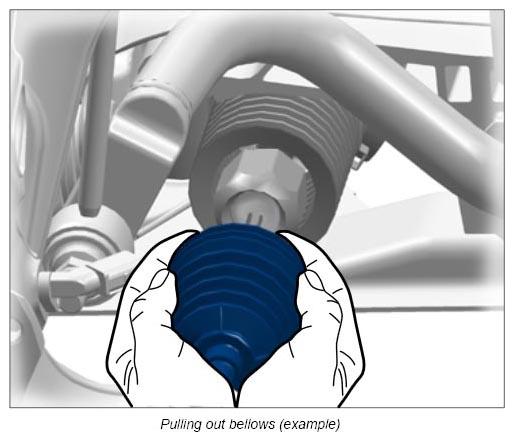

Carefully pull the bellows outwards until the axial joint is accessible. → Pulling out bellows (example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

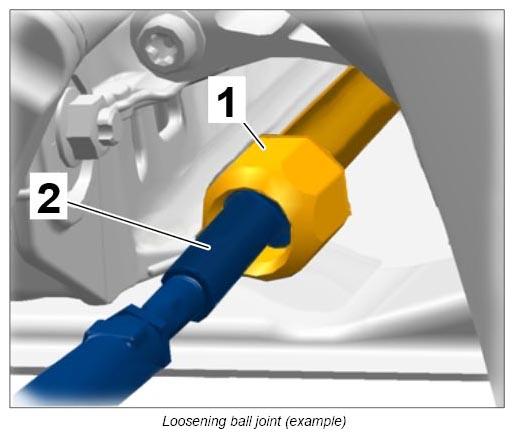

Unscrew octagon -1- on the ball joint of the tie rod -2- from the rack-and-pinion using V.A.G 1923 open-jawed wrench insert Nr.95-2 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tie rod. If the tie rod is replaced, the marking for the old tie rod on the wheel side must be copied to the new tie rod.
