Removing intermediate steering shaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The sealing bellows and intermediate steering shaft are one unit .
The sealing bellows cannot be removed from the intermediate steering shaft .
Do not try to remove the sealing bellows from the intermediate steering shaft!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

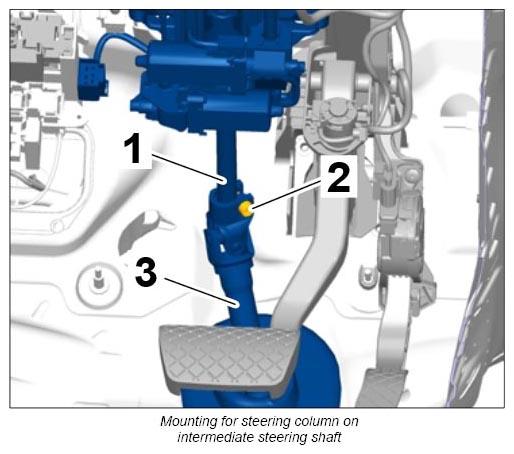

Unscrew fastening screw -2- on universal joint.
Pull intermediate steering shaft -3- off the steering column -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

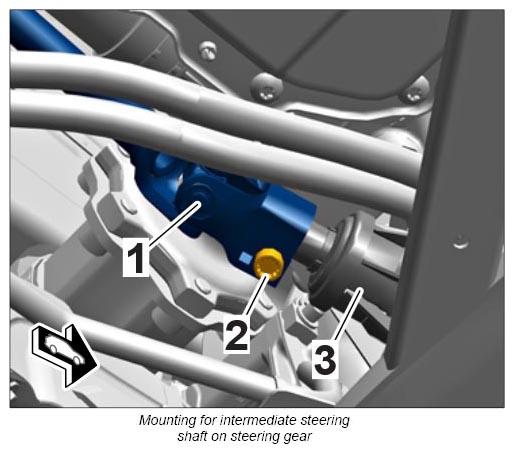

Unscrew fastening screw -2- on universal joint.
Pull intermediate steering shaft -1- off the steering gear -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

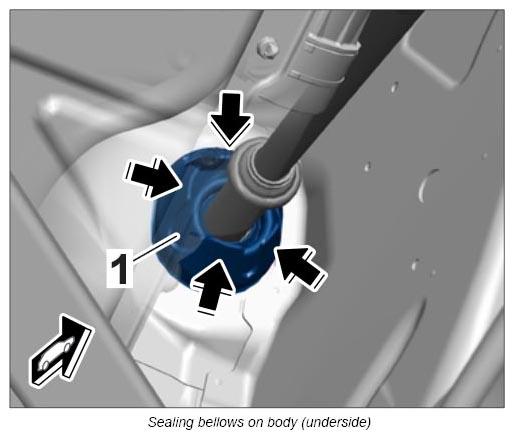

Press sealing bellows -1- together on the tabs and press into the interior of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

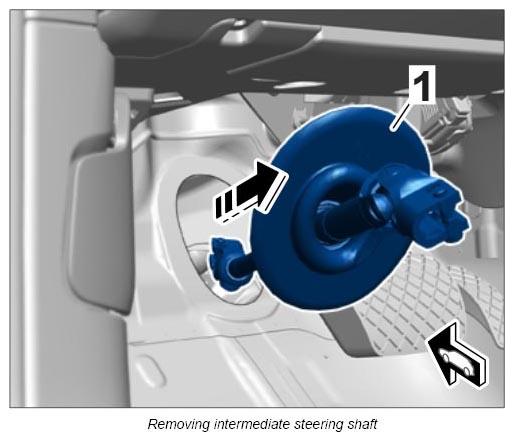

Remove intermediate steering shaft -1- by pulling it towards the passenger compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
