Removing steering column

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G12888278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Disconnect steering column from intermediate steering shaft.
    1. 1.1. Unscrew fastening screw -2-  on universal joint.
      G12888279Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Pull intermediate steering shaft -3-  off the steering column -1-  .

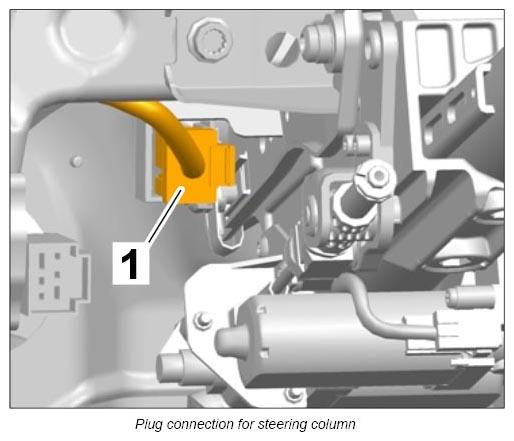

  2. Release and disconnect electric plug connection -1-  .
    G12888280Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove steering column.
    1. 3.1. Unscrew fastening screws -1-  for the steering column -2-  at the bottom of the mounting saddle.
      G12888281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Unscrew fastening screws -1-  and -2-  for the steering column at the top of the retaining frame. Support the steering column from below with your hand.
      G12888282Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Pull steering column back slightly, lower it and remove it.
