Assembling steering wheel

The steering wheel is assembled in reverse order to disassembly. Pay particular attention to the following:

1. Tighten fastening screws -1-  on the contact bridge -2-  . Tightening torque 6 Nm (4.5 ft. lb.)

   Check that the springs are fitted between the contact bridge and steering wheel skeleton and check that they are seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Multi-functional switches can be used immediately after installation. They do not need to be coded.

2. Fit multi-functional switch -2-  with cables and front trim -3-  into the main cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Check cable routing! Route cables under the plastic lugs, see marked positions.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Tighten fastening screws -1-  for the multi-functional switch -2-  and front trim -3-  . Tightening torque 0.45 Nm (0.25 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Tighten fastening screws -1-  for main trim. Tightening torque 2 Nm (1.5 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Insert paddles into guides -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Tighten fastening screws -1-  for the paddles -2-  . Tightening torque 2.5 Nm (2 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Insert control unit -1-  at the rear in the steering wheel and lock it.

   Then lock the control unit at the front in the steering wheel at position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

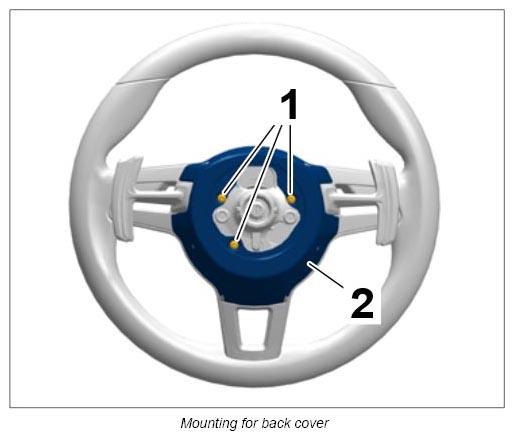

8. Tighten fastening screws -1-  on rear cover -2-  . Tightening torque 2.7 Nm (2 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
