Removing steering wheel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn wheels to straight-ahead position.

    Information

    • Always release and disconnect the plug connections for steering wheel heater cables and airbag cables before removing the steering wheel  .

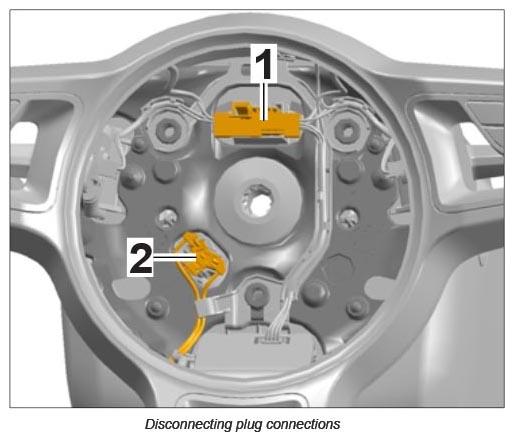

  2. Release plug connection for airbag wire harness -1-  and disconnect it.
  3. If the vehicle has a heated steering wheel: release and disconnect plug connection for steering wheel heating -2-  .
    G12888243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

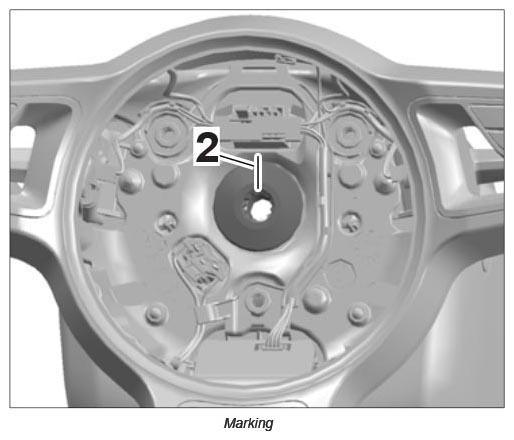

    Immediately after unscrewing the screw and before  removing the steering wheel, always mark the position of the steering wheel between the steering wheel and steering column -2-  .

    G12888244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    This ensures that the steering wheel will be fitted at the same position on the steering column again during re-installation.

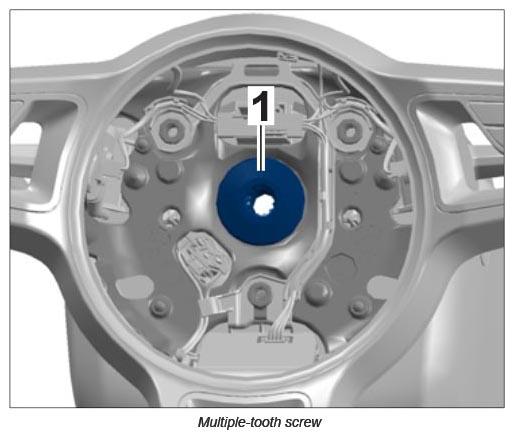

  4. Unscrew and remove fastening screw -1-  using multiple-tooth socket-wrench insert Nr.32  .
    G12888245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Mark the position of the steering wheel.
  6. Remove steering wheel.
