Installing steering wheel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Installation is performed in reverse order.

    Steering wheel to steering column: Initial tightening 30 Nm (22 ft. lb.) Final tightening +90°

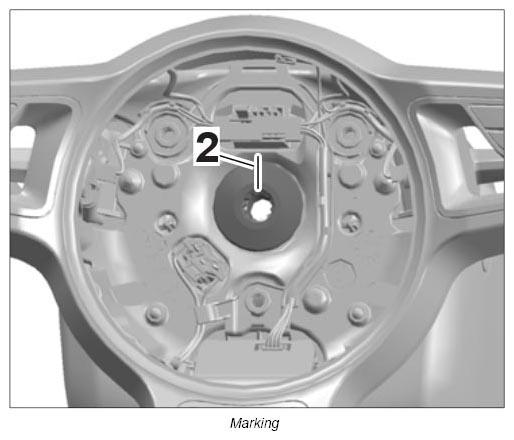

  2. When fitting the steering wheel, make sure that the marking -2-  between the steering wheel and steering column is aligned.
    G12888246Courtesy of PORSCHE CARS NORTH AMERICA, INC.
