Removing control unit for electric steering column lock (ELV)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

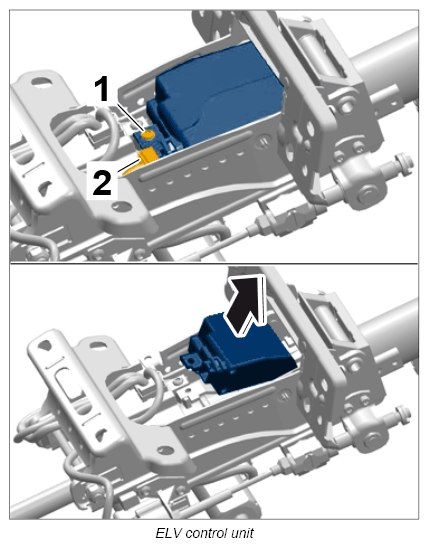

Release and disconnect connector -2- .
Unscrew and remove fastening screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the ELV control unit and pull it out of the steering column.
