Installing pressure sensor
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

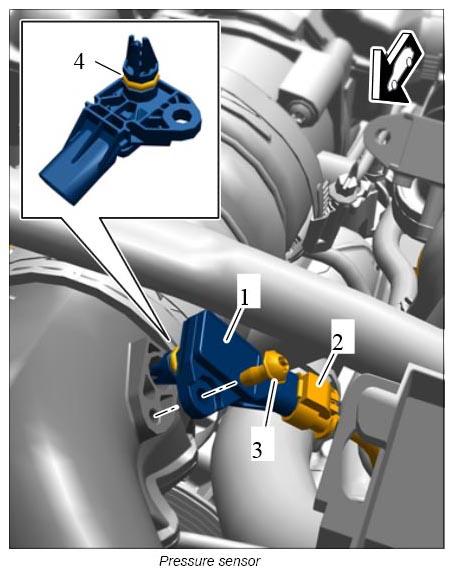

- Install pressure sensor -1-
.
- 1.1. Check sealing ring -4-
and replace it if necessary.
- 1.2. Insert pressure sensor -1-
and tighten screw -3-
.
- 1.3. Connect and lock electric connector -2-
.
- Push in foam insert.
