Removing charge-air cooler

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

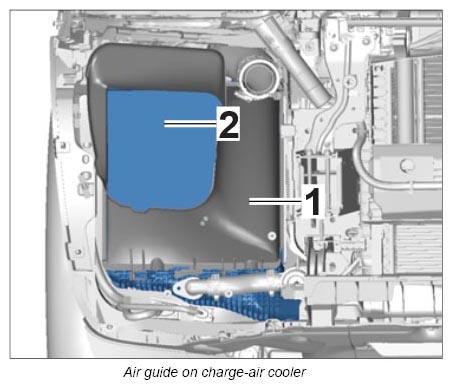

Remove air guide -1- on the charge-air cooler -2- .

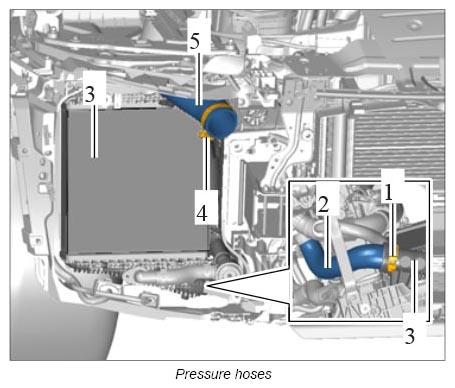

Disconnect pressure hoses on the charge-air cooler.
1. 2.1. Release locking spring -1- and pull off pressure hose -2- at the bottom of the charge-air cooler -3- .
2. 2.2. Loosen screw-type clamp -4- and pull off pressure hose -5- at the top of the charge-air cooler -3- .

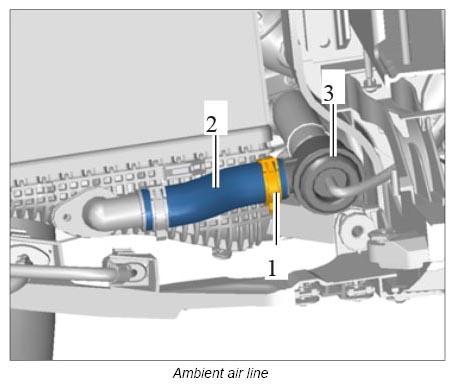

Loosen clamp -1- and pull ambient air line -2- off the wastegate -3- .
Remove charge-air cooler.

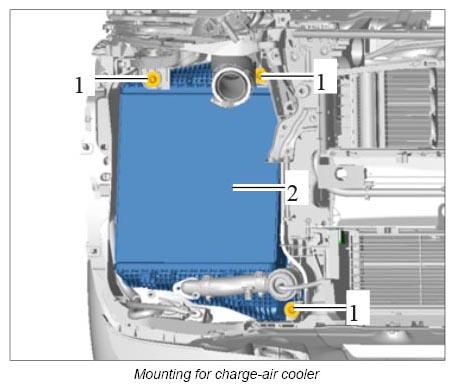

1. 4.1. Unscrew screws -1- .
2. 4.2. Remove charge-air cooler -2- by pulling it forward.
