Removing pressure pipe

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Left side only:

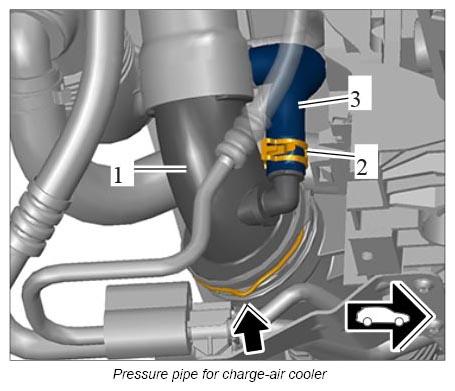

  1. Loosen clamp -2-  and pull pressure hose for tank vent line -3-  off the pressure pipe -1-  .
    G12833743

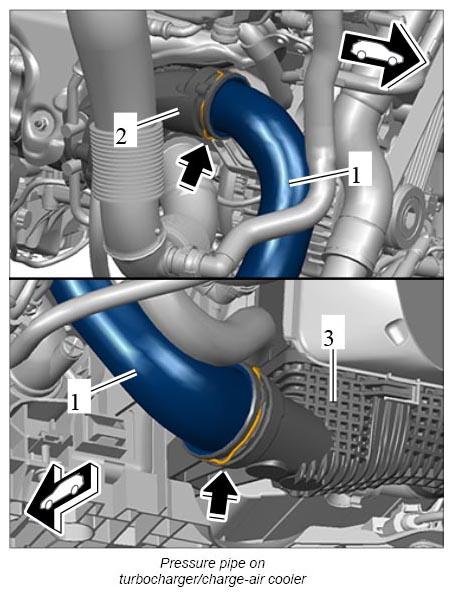

  2. Remove pressure pipe -1-  between the turbocharger -2-  and charge-air cooler -3-  .
    1. 2.1. Release retaining clips and pull off pressure pipe -1-  .
      G12833744
