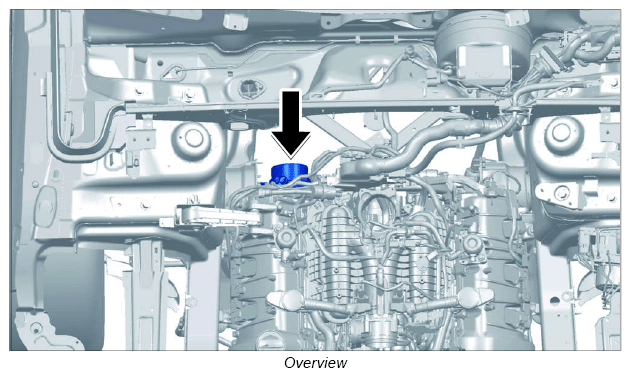

Removing vacuum pump
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove engine design cover.

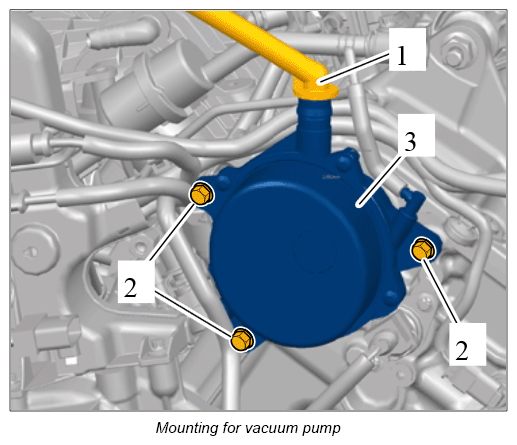

- Pull vacuum hose -1-
off the vacuum pump connection piece.
- Unscrew fastening screws -2-
.
- Remove vacuum pump -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
