Removing rear brake calliper

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

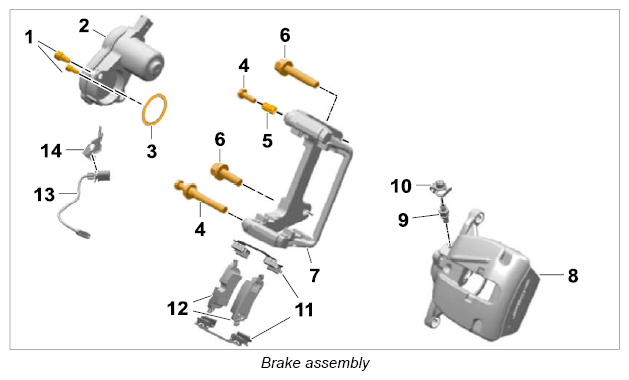

G12834765Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1  - Fastening screw for EPB actuator
2  - EPB actuator
3  - Sealing ring
4  - Fastening screw securing brake calliper to calliper carrier
5  - Boot for guide pin
6  - Fastening screw securing brake calliper to wheel bearing housing
7  - Calliper carrier
8  - Brake calliper
9  - Ventilation valve
10  - Dust boot
11  - Pad retaining bracket
12  - Brake pad
13  - Cable for brake pad wear indicator
14  - Cable holder for brake pad wear indicator
  1. Disconnect electric plug connection for brake pad wear indicator at the brake calliper.
  2. Release and disconnect electric plug connection -1-  on the speed sensor.

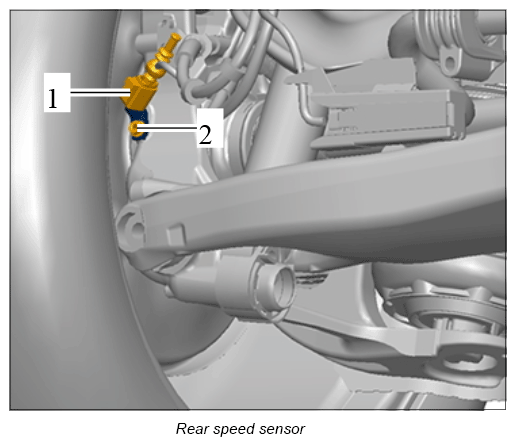

    G12834766Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect brake line -2-  at the brake calliper and collect brake fluid in a suitable container.
  4. Close off brake line using a suitable stopper.
  5. Unscrew fastening screws -3-  on the calliper carrier.

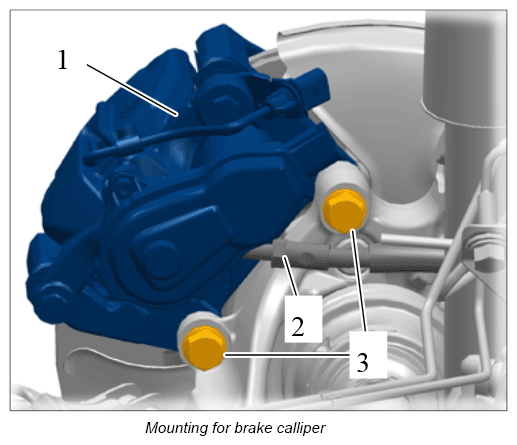

G12834767Courtesy of PORSCHE CARS NORTH AMERICA, INC.
