Removing radiator

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working with ATF

Possible danger of injury or damage (e.g. swollen hoses, skin irritation, danger of slipping, etc.)

→ Before lines are opened, place a cloth underneath them!

→ Components that come into contact with ATF must be cleaned IMMEDIATELY with water!

→ Take appropriate protective measures (protective clothing, safety goggles, oil binding material)

→ Collect emerging ATF!

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Release ATF lines -1 and 2- at the top of the engine compartment and disconnect them.

1.1. Soak up emerging ATF with a cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release vacuum line -1- from the holders.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric connectors for fans -1, 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release retaining clip and disconnect upper coolant line -1- from the radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect lower coolant line from the radiator.

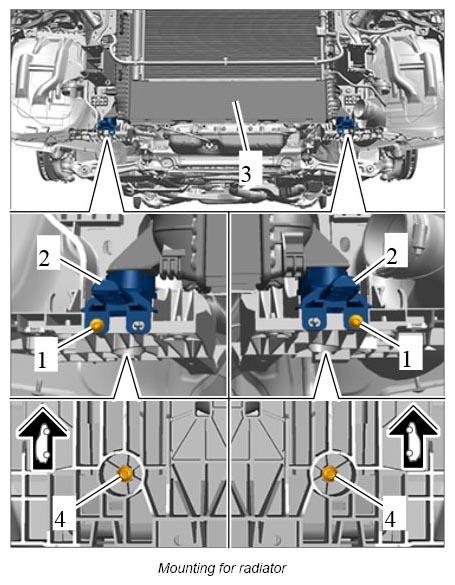

Unscrew screws on the radiator holder.

6.1. Unscrew screws -1- on the holder -2- .
6.2. Unscrew screws -4- at the bottom.

6.3. Lift radiator -3- up in direction of travel and remove it by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
