Removing coolant regulator

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Pointed or sharp objects

Risk of cracks, pricks or cuts

→ Wear personal protective gear.

Removed water pump -1- and coolant regulator -2- . →

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release cable plug -1- for the coolant regulator by inserting an angled pointed-nose pliers between the crankcase and coolant regulator housing and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove coolant regulator using shop-made tool.

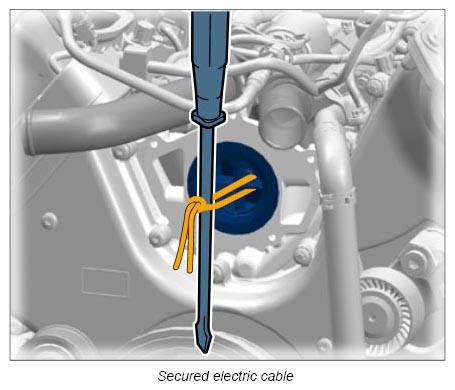

2.1. Use pointed-nose pliers to wrap a piece of wire or stiff electric cable through several spokes of the coolant regulator. Figure showing screwdriver → Secured electric cable .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2.2. Tie a knot in the wire or electric cable to prevent it from being pulled out -2- .
2.3. Insert an assembly lever or a large screwdriver through the cable. → Secured electric cable

2.4. Pull coolant regulator completely out of the crankcase or coolant regulator housing. Support the assembly lever under the vibration balancer if necessary. → Secured electric cable Figure shows removed coolant regulator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
