Removing coolant regulator housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

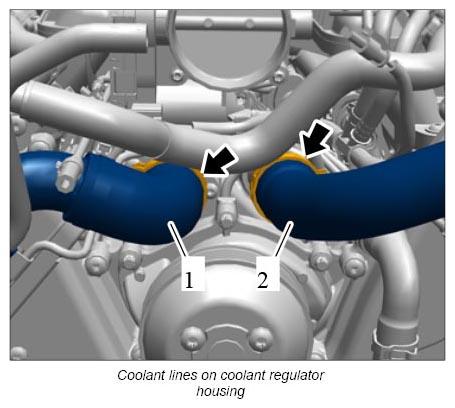

Loosen clamps and pull off coolant hoses -1 - and -2- .

1.1. Soak up emerging coolant with a cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

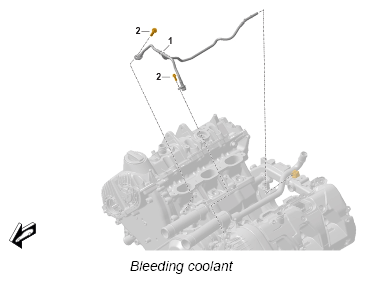

Loosen the vent line on the cylinder heads.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

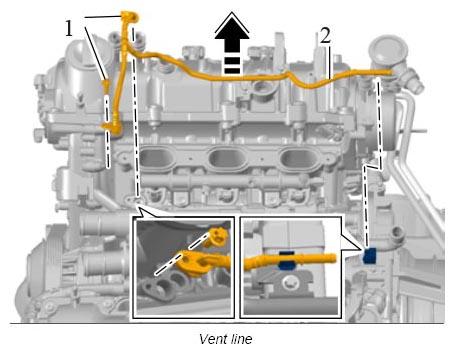

1. 2.1. Unscrew and remove fastening screws -1- .
2. 2.2. Remove vent line -2- .

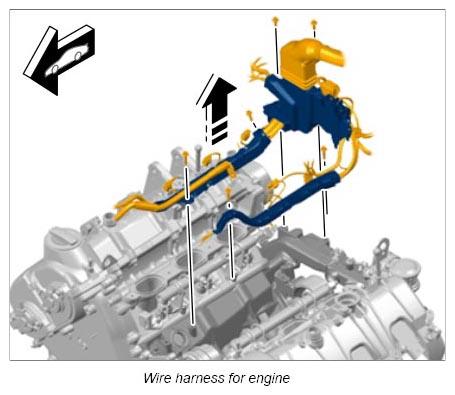

Remove wiring harness screws on the cylinder heads and at the water guide and loosen the wiring harness. → see figure below

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

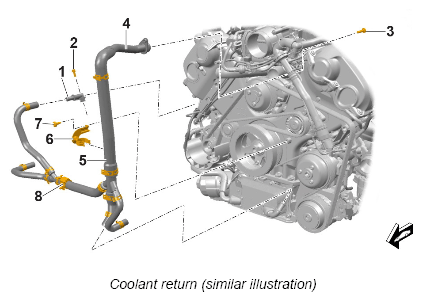

Disconnect coolant pipe -4- , pull it forward and set it aside.

4.1. Unscrew screw -3- and pull off coolant pipe -4- .

4.2. Soak up emerging coolant with a cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

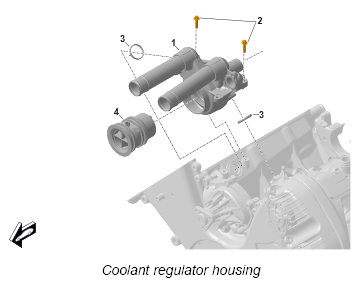

Unscrew the screws on the coolant regulator housing -2- and loosen coolant regulator housing -1- by pulling it upwards. The coolant pipe -1- (bottom figure) remains fitted in the coolant regulator housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

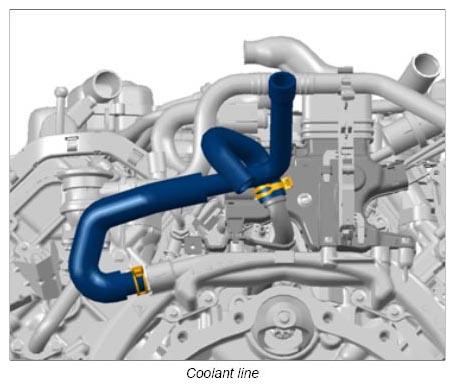

Remove the two coolant hoses from the coolant pipe behind the cable duct (figure shows several coolant hoses). → Coolant line Remove coolant regulator housing with coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

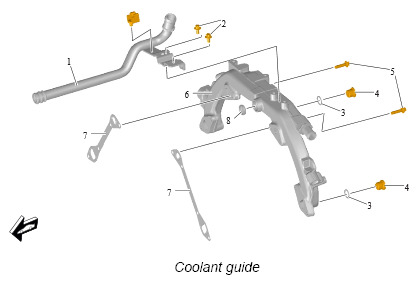

Disconnect coolant regulator housing and coolant pipe if necessary. Replace sealing rings.
