The pictures shown in this document may differ from the original
.

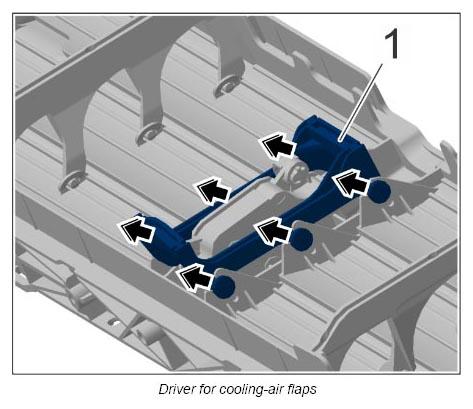

Remove driver for cooling-air flaps -1-
in -direction of arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

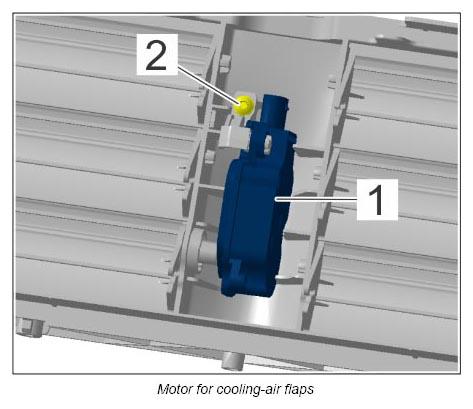

Loosen motor for cooling-air flaps -1-
.
2.1. Unscrew screw -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

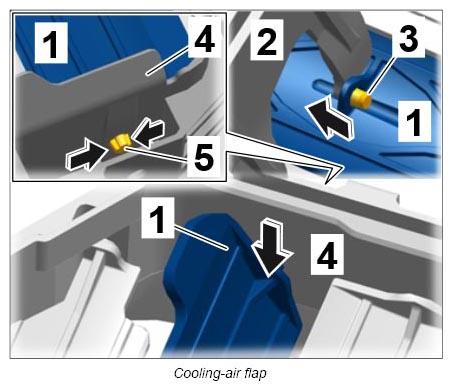

Loosen cooling-air flap -1-
at the housing.
3.1. Press frame -2-
in -direction of arrow -
and guide pin -3-
out of cooling-air flap -1-
.
3.2. Press tabs on connection piece -5-
together and remove cooling-air flap -1-
by pulling it downwards.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

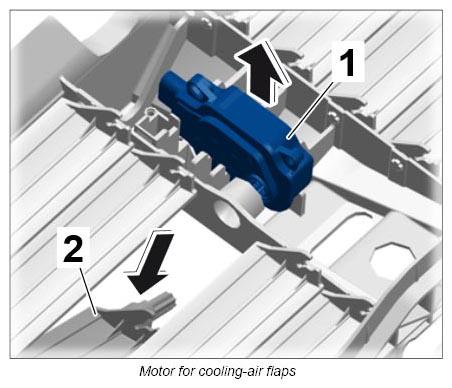

Remove motor for cooling-air flaps -1-
.
4.1. Remove cooling-air flap -2-
in a downward direction.
4.2. Lift motor for cooling-air flaps -1-
up and remove it.
