Removing rear air guide

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

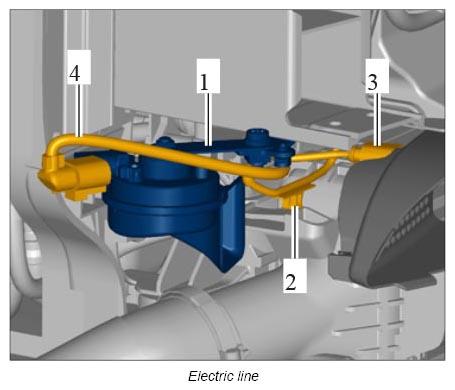

  1. Expose line -4-  .
    1. 1.1. Disconnect electric plug connection -3-  .
    2. 1.2. Unclip clip -2-  on the lock carrier.
    3. 1.3. Expose horn -1-  with electric line -4-  .
      G12833533Courtesy of PORSCHE CARS NORTH AMERICA, INC.

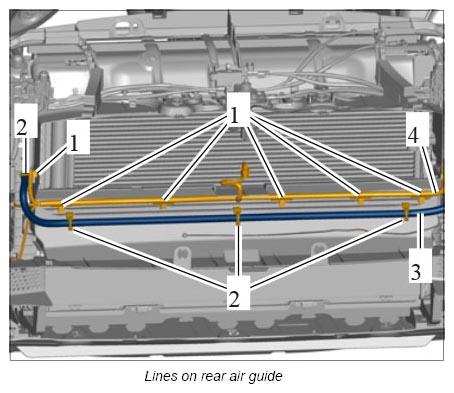

  2. Expose lines -3-  and -4-  .
    1. 2.1. Unclip clips -1-  on electric line -4-  at the rear air guide.
    2. 2.2. Unclip clips -2-  on headlight cleaning line -3-  at the rear air guide.
    3. 2.3. Set lines -3-  and -4-  aside.
      G12833534Courtesy of PORSCHE CARS NORTH AMERICA, INC.

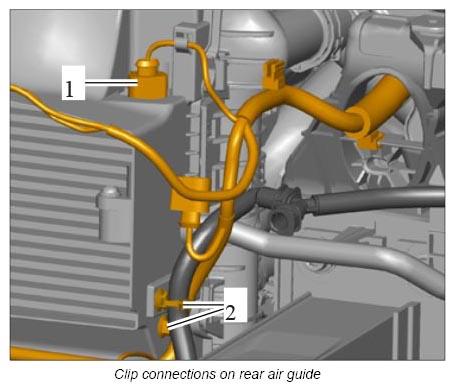

  3. Disconnect electric plug connection -1-  and unclip clip -2-  on rear air guide.
    G12833535Courtesy of PORSCHE CARS NORTH AMERICA, INC.

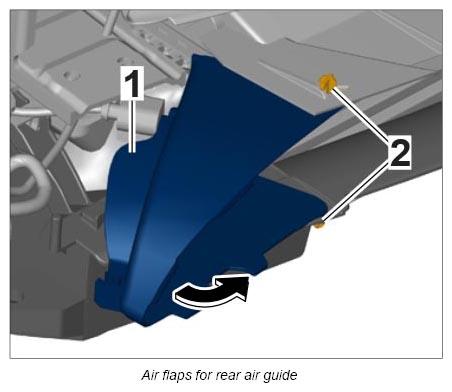

  4. Pull air flaps -1-  forward in -direction of arrow-  and detach them from pedestrian protection and rear air guide -2-  .
    G12833536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

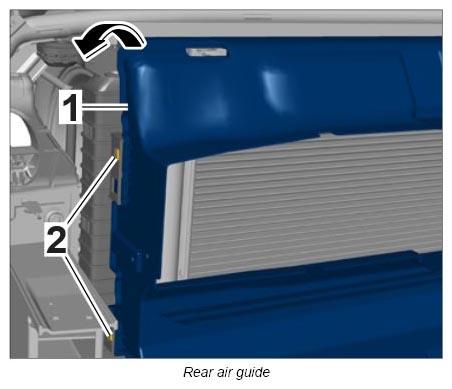

  5. Remove rear air guide -1-  .
    1. 5.1. Unclip rear air guide -1-  from the locking lugs -2-  on both sides.
    2. 5.2. Lift air guide -1-  up slightly out of the upper bracket and remove in -direction of arrow-  .
    G12833537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
