Removing cooling fan housing
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

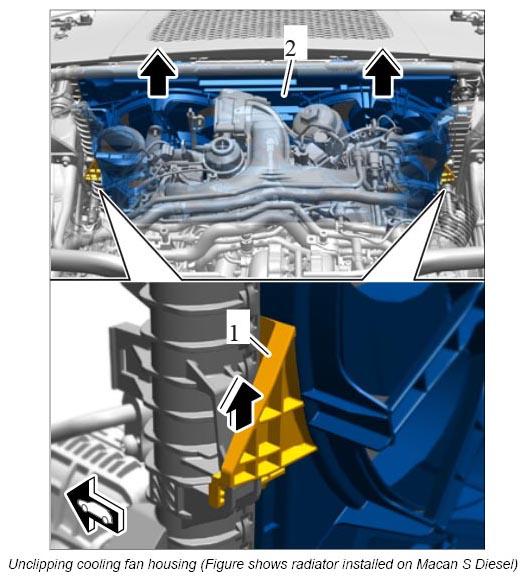

- Remove cooling fan housing -2-
.
- 1.1. Unclip guide lugs -1-
on both sides from the retaining device for the radiator using a screwdriver.
- 1.2. Lift up cooling fan housing -2-
in -direction of arrow-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
