Installing cooling fan housing
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

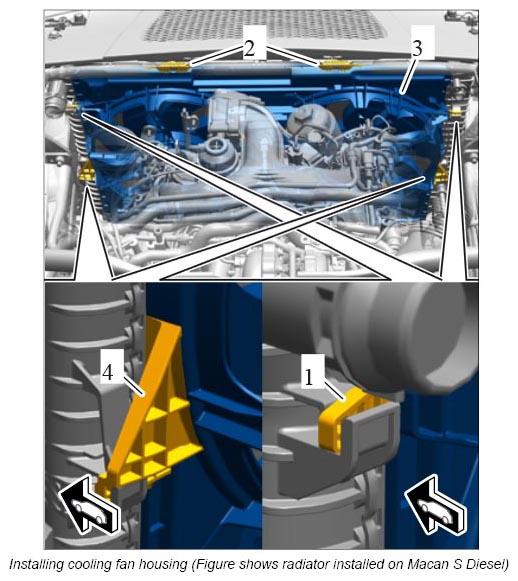

- Install cooling fan housing -3-
.
- 1.1. Position cooling fan housing -3-
in the engine compartment.
- 1.2. The retaining lugs -2-
must be positioned over the radiator.
- 1.3. Clip guide lugs -1 -
and -4-
at both sides into the retaining device for the radiator until they lock with an audible click.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
