Removing ventilation cover
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove flap in side trim panel for rear luggage compartment.

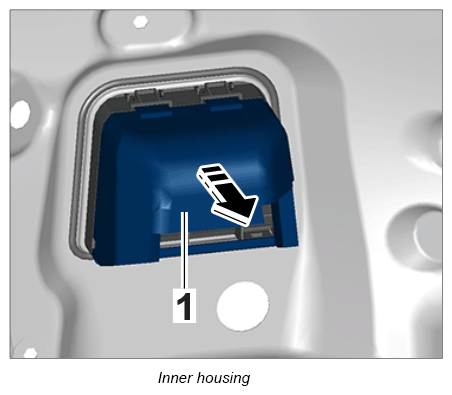

- Carefully unclip inner housing -1-
at the top and bottom and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

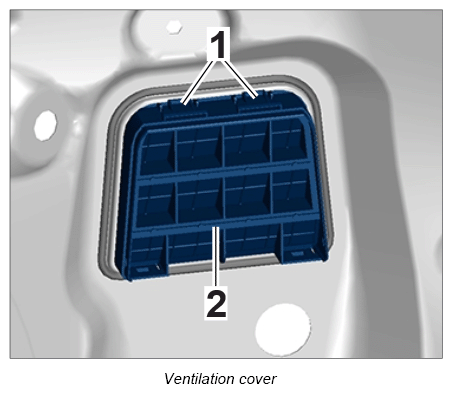

- Press in clips at the top -1-
and carefully remove ventilation cover -2-
by pulling it outwards.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
