Removing rear center air vent

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

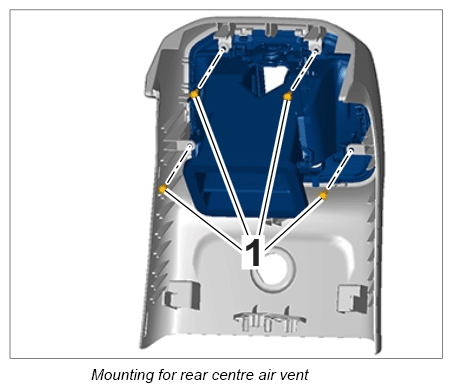

  1. Unscrew fastening screws -1-  on the air vent and disconnect air vent from the covering frame.
G12837472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
