Removing fan motor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

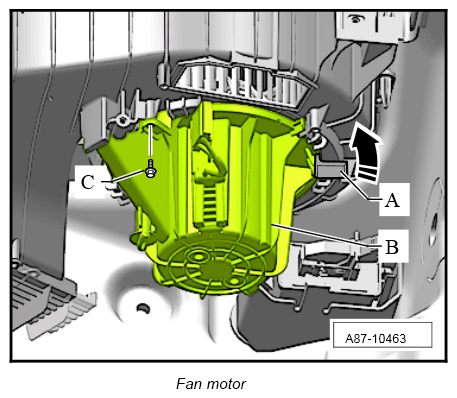

  1. Loosen locking mechanism -A-  .
  2. Turn fan motor -B-  in -direction of arrow-  .
G12837470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
