Installing heating/fresh-air unit
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is performed in reverse order.
Observe specified tightening torques:

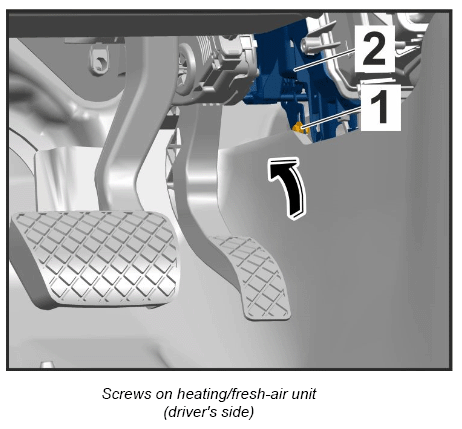

- 1.1. Tighten screws -1-
on the heating/fresh-air unit (on driver's side) -2-
. Tightening torque 6 Nm (4.5 ft lb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

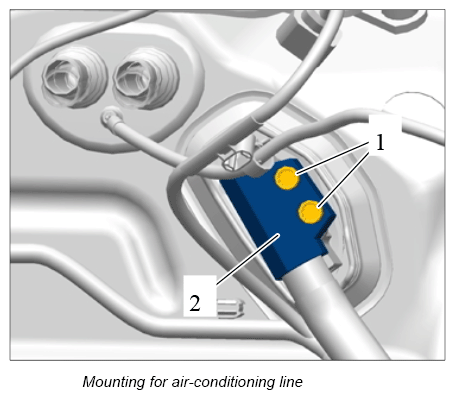

- 1.2. Tighten fastening screws -1-
for the air-conditioning line -2-
. Tightening torque 12 Nm (9 ft lb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
