Removing oil pan

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Hot fluid
  • Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

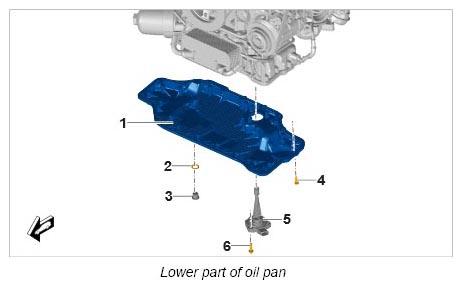

  1. Remove oil pan.
    1. 1.1. Release and disconnect electric connector for oil level sensor -5-  .
    2. 1.2. Unscrew all fastening screws -4-  on the oil pan -1-  and remove oil pan -1-  .
    3. 1.3. Clean emerging oil with a cloth.
      G12833516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
