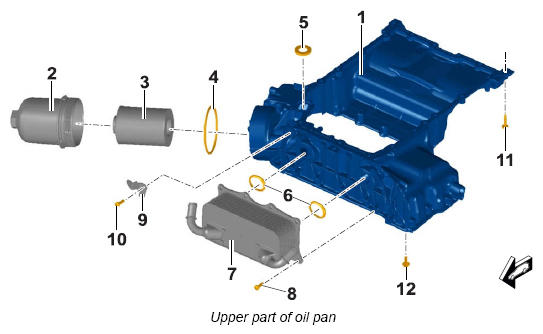

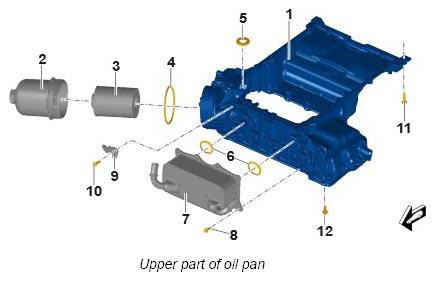

Upper part of oil pan
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Oil guide housing (upper part of oil pan) |
| 2 |
Oil-filter cover → Tightening torque: 25 Nm (19 ft lb.) |
| 3 |
Oil filter |
| 4 |
Sealing ring on oil filter/oil or grease before fitting replace |
| 5 |
Oil duct adapter (cannot be replaced) |
| 6 |
Heat exchanger seal |
| 7 |
Oil/water heat exchanger |
| 8 |
Screw → Tightening torque: 10 Nm (7.5 ft lb.) |
| 9 |
Holder |
| 10 |
Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 11 |
Aluminum screw,
M6 x 30 Al9/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening: +90° |
| 12 |
Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ft lb.) |

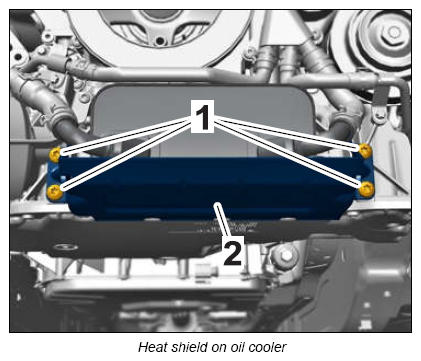

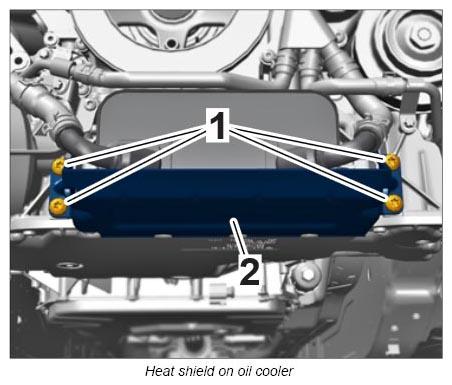

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Screws → Tightening torque: 23 Nm (17 ft lb.) |
| 2 |
Heat shield |
