Removing oil pan (oil guide housing)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

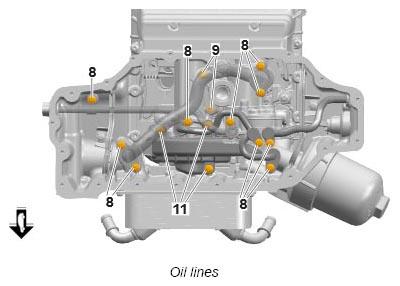

  1. Remove oil lines and cover on sprocket.
    1. 1.1. Unscrew screws -8, 9-  and -11-  .
      G12833519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove oil pump. → 172019 REMOVING AND INSTALLING OIL PUMP

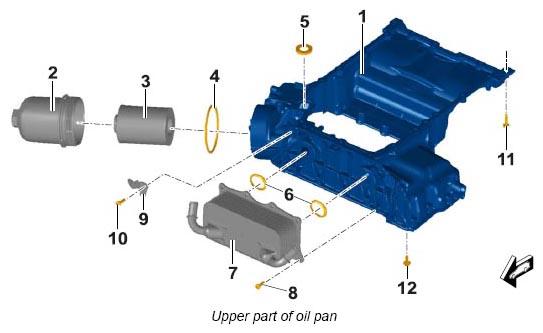

  3. Remove oil pan.
    1. 3.1. Unscrew screws -11-  and -12-  .
    2. 3.2. Remove oil pan.
      G12833520Courtesy of PORSCHE CARS NORTH AMERICA, INC.
