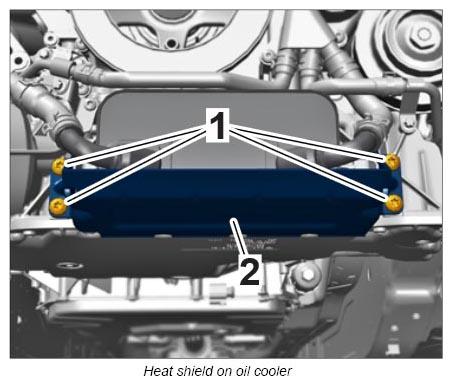

Unscrew screws -1-
and remove heat shield -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

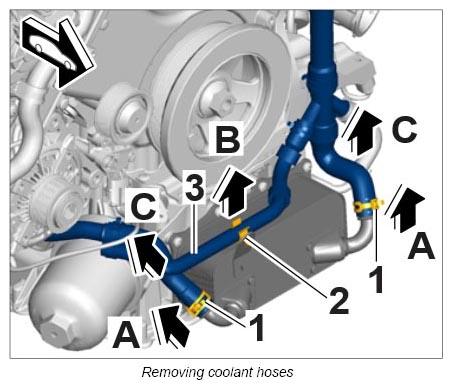

Disconnect coolant hoses.
2.1. Loosen the clips -1-
on the coolant hoses at the oil cooler and slide them onto the hoses -A-
.
2.2. Clamp the hoses using hose clamp 3093
or hose clamp 3094
.
2.3. Unclip the coolant hose assembly -3-
on the oil cooler from the holder -2-
(-B-
).
2.4. Pull off hoses -C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil cooler.

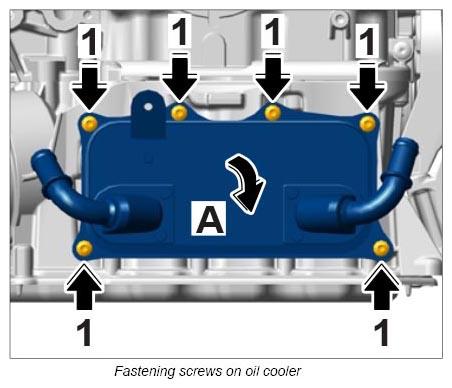

3.1. Unscrew and remove fastening screws -1-
.
3.2. Tilt oil cooler at the top in direction of travel -A-
.
