Removing oil pump

Information

• The illustrations show the partly disassembled engine on the assembly support with oil pump facing upwards.
• The oil guide housing is removed.
• Adjustment operations on the balance shaft only work when the timing-case cover is fitted and the vibration balancer is connected.

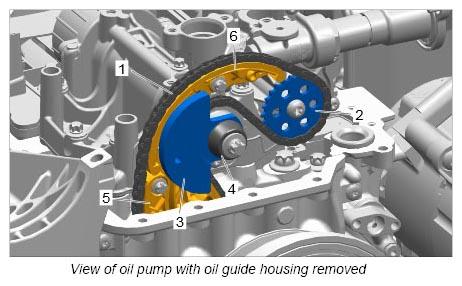

Condition of component after removing the oil guide housing =>

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove oil pump drive.

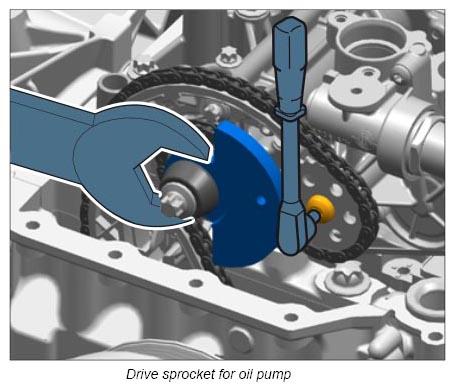

   1. 1.1. Turn the crankshaft vibration balancer as required until you can fit an open-ended wrench (a/f 36) on the balance weight on the balance shaft. Remove screw (M8 x 35) on the drive gear wheel for the oil pump. → Drive sprocket for oil pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

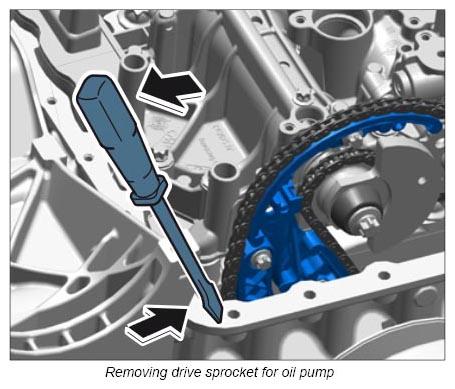

   2. 1.2. Relieve the tensioning rail using a screwdriver (push it away) and remove the drive gear wheel for the oil pump.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

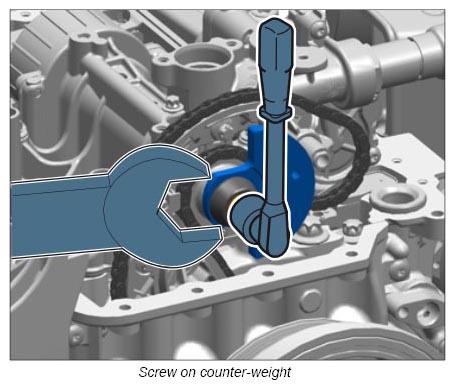

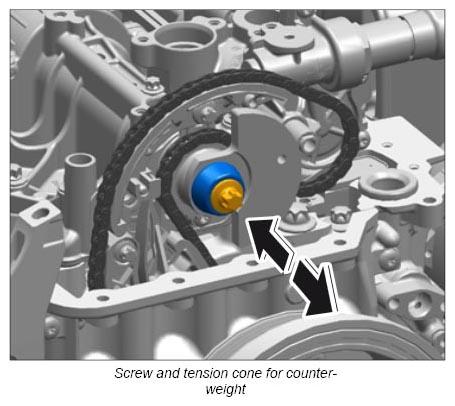

   3. 1.3. Loosen counter-weight on the balance shaft. Counter at the intervention point with an open-ended wrench (a/f 36) and remove screw (M10 x 45) and tension cone.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Make sure that small parts and the feather key do not fall off.

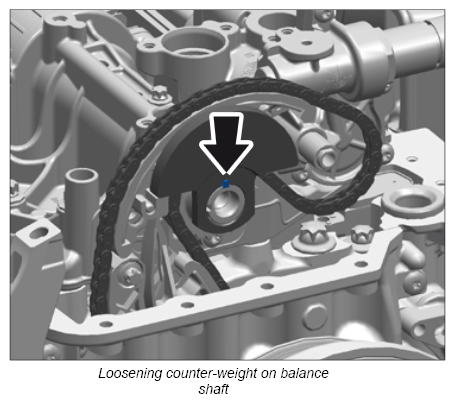

   4. 1.4. Loosen the counter-weight using pliers. When doing so, ensure that the feather key does not fall into the crankcase (place a cloth over the timing-case cover).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

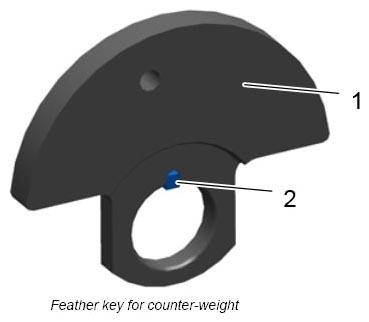

   5. 1.5. Remove the feather key from the counter-weight or balance shaft (depending on where the feather key is stuck) using pointed-nose pliers or a magnet.

      1	Counter-weight
      2	Feather key

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

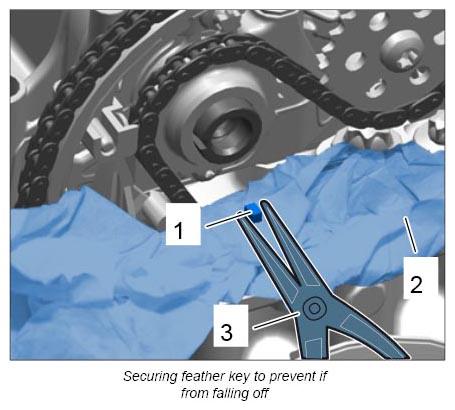

   1	Feather key
   2	Cloth over timing-case cover
   3	Pointed-nose pliers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

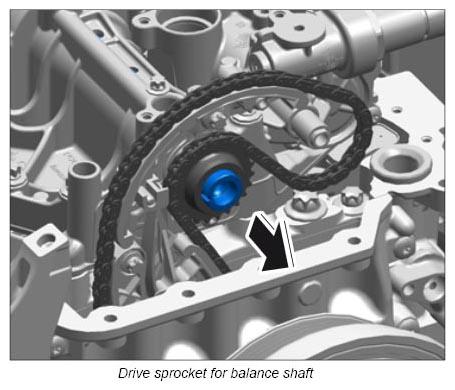

2. Loosen drive sprocket for balance shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

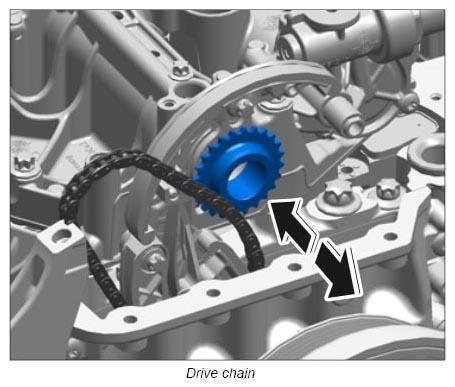

3. Move the drive chain aside and remove the drive sprocket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

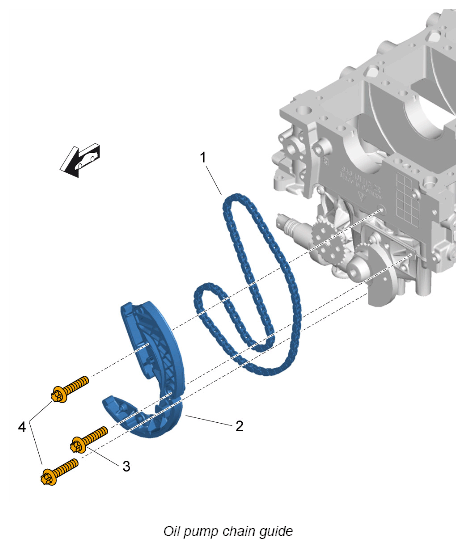

4. Loosen guide rail fastening point on the oil pump. To do this, remove two M6 screws. The bottom M6 screw, which is hidden by the timing-case cover, remains fitted.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

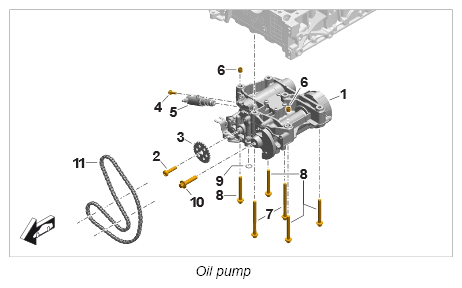

5. Remove fastening screws -7-  and -8-  from the oil pump (different sizes).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Lift up the oil pump and guide it out under the tensioning rail. Remove oil pump.
