Installing oil pump

Information

Tightening torques, tightening sequence and assembly overviews for the engine and transmission:

• Group 1: →  1X00IN TECHNICAL VALUES
• Group 2: →  2X00IN TECHNICAL VALUES
• Group 3: →  3X00IN TECHNICAL VALUES

Information

• The pictures shown in this document may differ from the original.

1. The oil pump is installed in reverse order.
2. Before adjusting the balance shaft, check the following:
   • The chain drive for the oil pump must be completely fitted.
   • The balance weight is only screwed to the balance shaft when the feather key is inserted correctly and the balance shaft with counter-weight can be turned. -4-
   • The timing-case cover must be fitted.
   • The vibration balancer is connected.
   • Have a staking pin locating pins 9595/1  and 6-mm drill bit or 6-mm screw ready.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

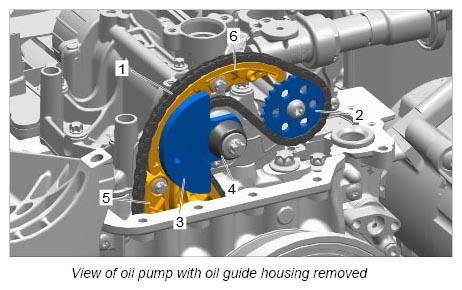

   1	Drive chain
   2	Oil pump sprocket (drive wheel)
   3	Balance weight (centrifugal weight)
   4	Cone washer with screw (for securing balance weight to balance shaft); fitted completely - but loose - before adjustment.
   5	Tensioning rail module
   6	Guide rail

   1. 2.1. Turn the crankshaft at the vibration balancer in direction of rotation to TDC position and lock at this position using a staking pin locating pins 9595/1  .

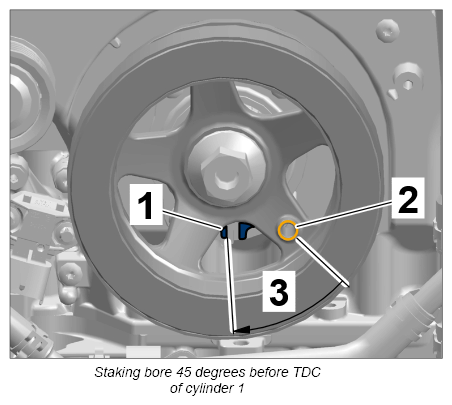

      1. 2.1.1. Insert staking pin locating pins 9595/1  into the staking bore on the vibration balancer -2-  .

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.

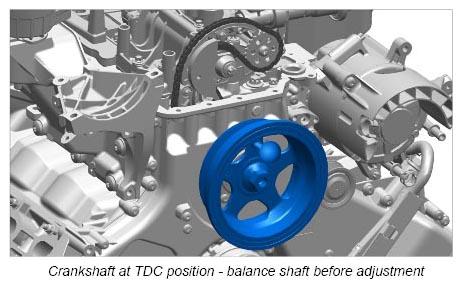

      2. 2.1.2. Turn the crankshaft at the vibration balancer -3-  so that the staking pin in the vibration balancer slips into the lower staking point on the timing-case cover -1-  . At the same time, exert gentle pressure on the staking pin while turning. Correct position of crankshaft. → Crankshaft at TDC position - balance shaft before adjustment

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

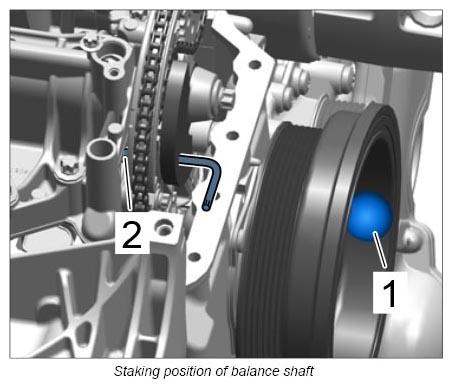

   2. 2.2. Move the balance shaft at the counter-weight by pressing lightly with your fingers and turn it so that a 6-mm drill bit (or similar object) fits through the hole in the counter-weight into the adjustment bore in the chain guide. -A-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      1	Crankshaft fixed with special tool
      2	6-mm tool (Allen head shown) inserted

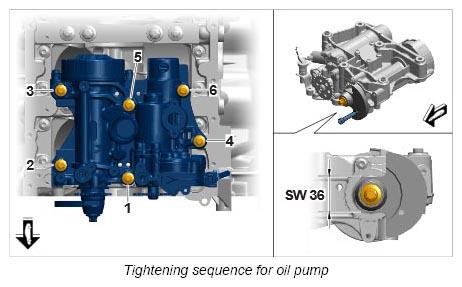

      Fig 1: Oil Pump Screws Tightening Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

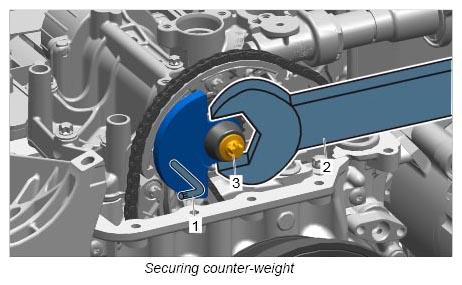

   3. 2.3. Counter the counter-weight with an open-ended wrench (a/f 36) in staked position and tighten the screw.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      1	6-mm tool (Allen head shown) inserted
      2	Open-ended wrench, a/f 36
      3	Cone washer with screw (for securing balance weight to balance shaft)
