Removing oil level sensor
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

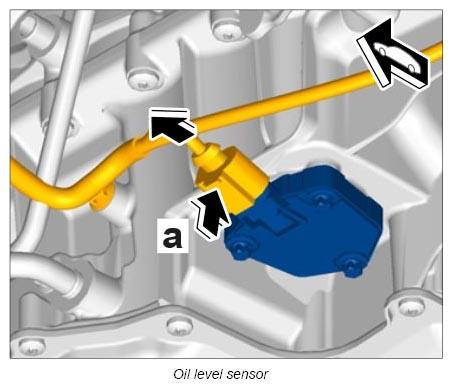

- Disconnect electric plug connection -a-
on the oil level sensor. Use assembly tool T10118
if necessary.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

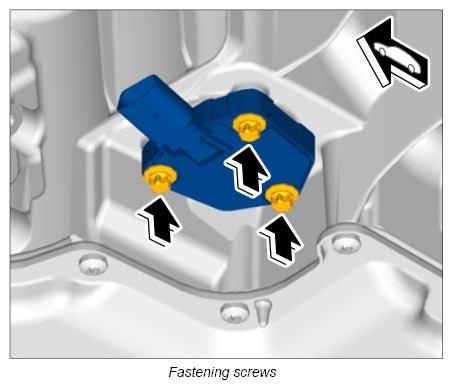

- Loosen fastening screws and pull the oil level sensor out of the oil guide housing. Oil will start to drip.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Replace sealing ring for oil level sensor.
