Installing oil-pressure sender
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

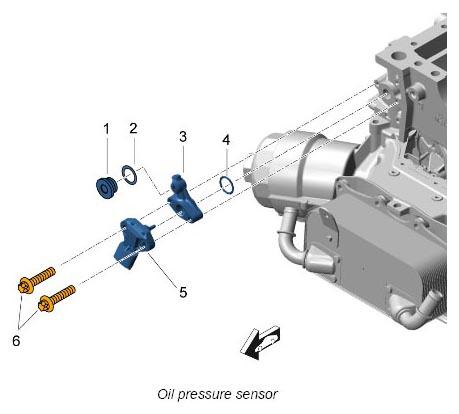

- Install oil-pressure sender.
- 1.1. Clean the sealing faces.
- 1.2. Replace sealing ring -4-
.
- 1.3. Position oil-pressure sender -5-
with adapter -3-
and tighten screws -6-
to.
- 1.4. Connect electric connector.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
