Removing knock sensor
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Observe and note installation position of knock sensors.

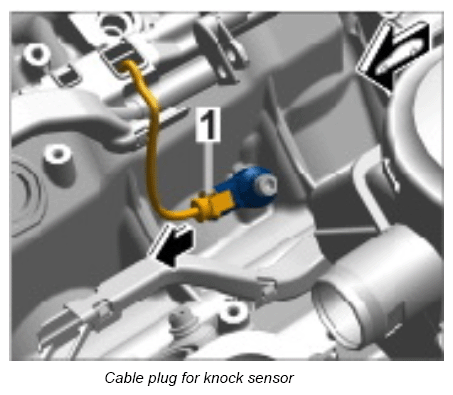

Disconnect cable plug -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

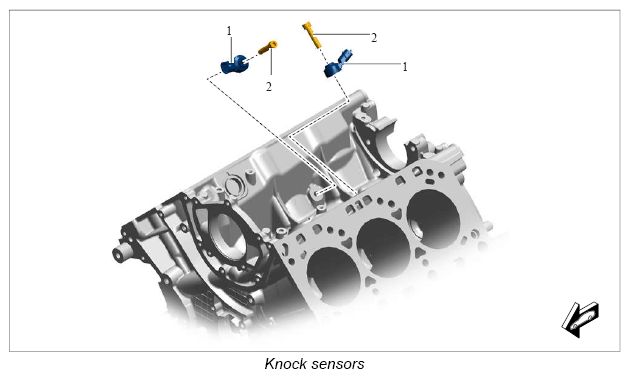

- Loosen and unscrew fastening screw -2-
and remove knock sensor -1 -
from the crankcase.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Knock sensor |
| 2 |
Screw, M8 x 35 |
