Installing knock sensor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening torques, tightening sequence and assembly overviews for the engine and transmission:

Group 1: → 1X00IN TECHNICAL VALUES
Group 2: → 2X00IN TECHNICAL VALUES
Group 3: → 3X00IN TECHNICAL VALUES

Information

Observe the specified tightening torque for the knock sensor screw .
Align the housing and cable plug for the knock sensor in such a way that they are not touching .
Otherwise, there is no guarantee that the knock sensor will work correctly .

Information

Clean contact surface of knock sensor with a cloth.

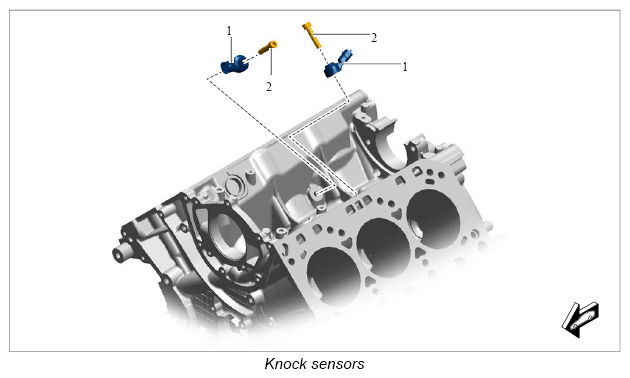

Install knock sensors -1- . Make sure that the knock sensors are aligned as shown in the illustration.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Knock sensor
2	Fastening screw, M8 x 35

Tighten fastening screws -2- .
Push on cable plug.
