Removing spark plugs

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Broken spark plug electrodes

Bits of electrodes can fall into the combustion chamber

→ Only check electrode gap of spark plugs, but do not bend them.

→ Spark plugs with an incorrect electrode gap must be replaced.

Information

Only use spark plugs approved by Porsche AG!
Check electrode gap before screwing in a new spark plug.

Unscrew spark plugs using special tool spark plug socket and extension 3122 B .

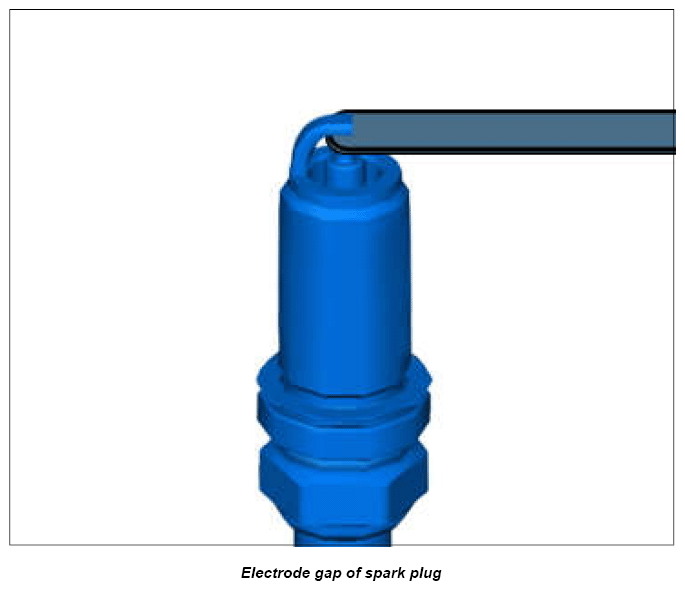

Check electrode gap. → Control value: 0.8 mm+/-0.05 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
