Removing hall-sender rotor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The work steps for the hall-sender rotor and sealing ring are identical

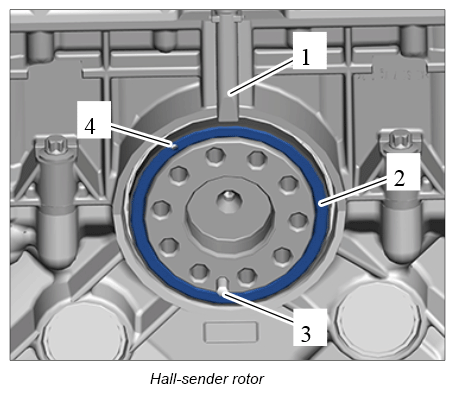

Pull out the crankshaft pulse sender -1- slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw extractor tip into the "TDC marking" -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use the slide hammer kit Nr.168 to knock out the extractor tip -1- together with the hall-sender rotor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

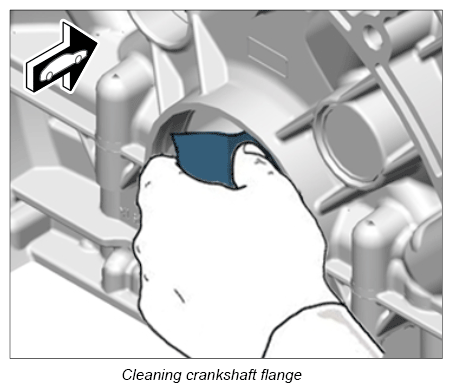

Clean the crankshaft flange.

4.1. The crankshaft flange must not be dirty or rusty.

4.2. If necessary clean with brake cleaner and remove rust with a metal-polishing pad.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
