Lubrication area for rubber sleeve on ignition coil

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

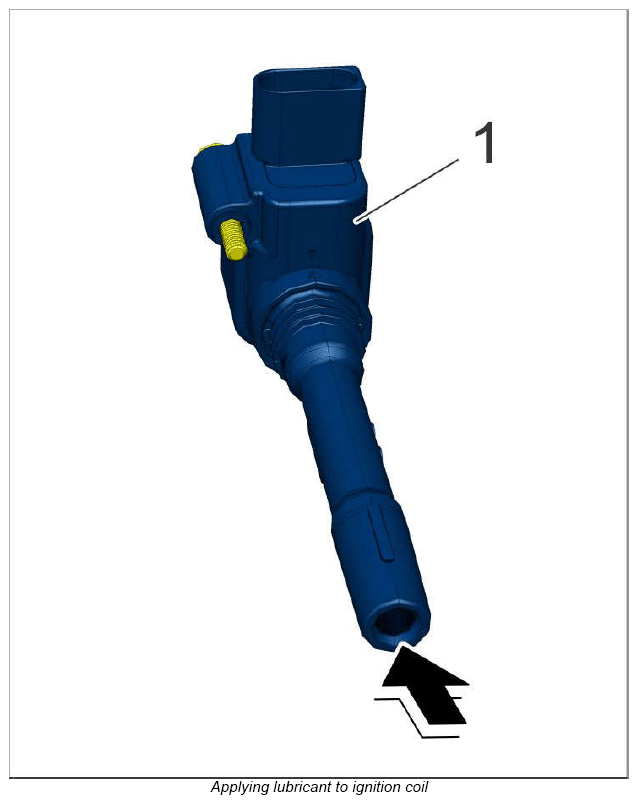

G12890813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Apply lubricant to the rubber sleeve on the ignition coil all the way around with a thickness of 1 to 2 mm  .
