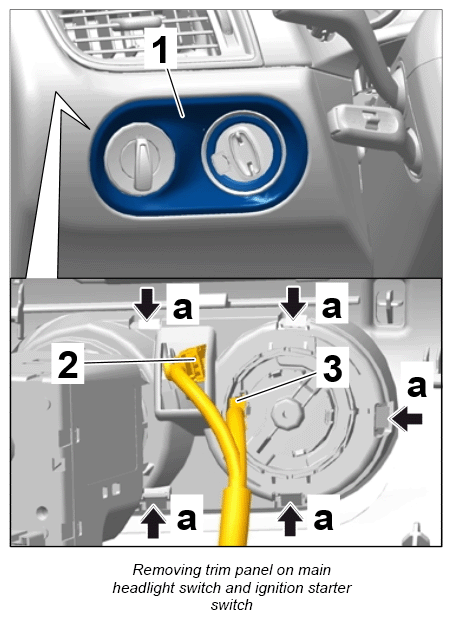

Remove trim panel -1-
on main headlight switch and ignition starter switch.
1.1. Disconnect electric plug connection -2-
on ignition starter switch light.
1.2. Unclip locking lugs -a-
and remove trim panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ignition starter switch.

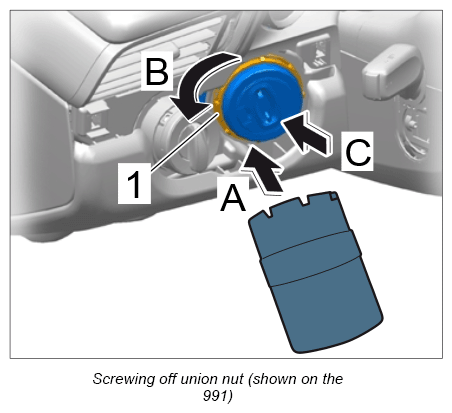

2.1. Loosen and unscrew union nut -1-
using wrench 9800
.
2.2. Remove ignition starter switches from trim panel under dashboard at the left.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

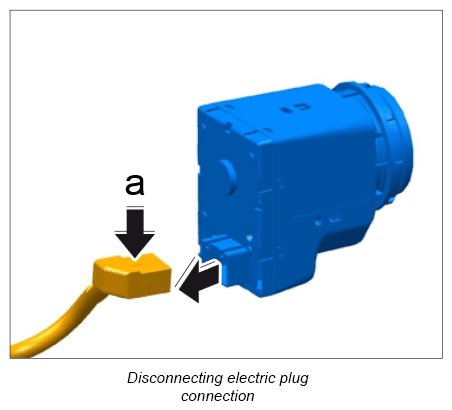

Release electric plug connection -a-
and disconnect it.
