WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

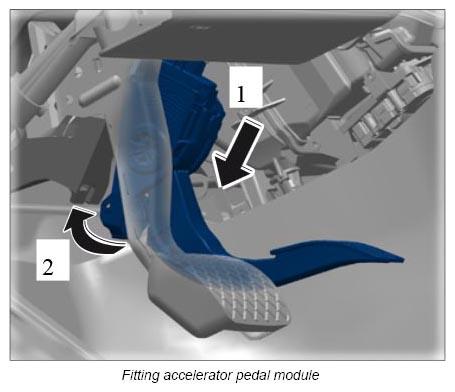

Install accelerator pedal module -arrows 1 and 2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -1-
on accelerator pedal module -2-
. Tightening torque 8 Nm (6 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect connector -1-
to the accelerator pedal module.
