Removing control unit for fuel pump

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

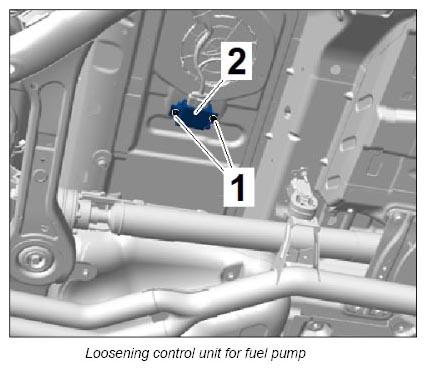

Screw off fastening nuts -1 - and remove control unit for fuel pump -2- from the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .

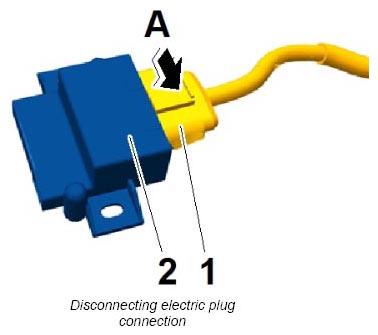

Release electric plug connection -1- (-a- ) and disconnect it from the fuel pump control unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
